特點：Features     法蘭膜片型彈性聯軸器零回轉間隙。 Metal disk type flexible coupling zero backlash. 具有高扭矩剛性、更高靈敏性。 Has the high torque capacity, higher sensitivity. 不銹鋼片有較強的補償徑向、角向和軸向偏差。 Stainless steel plate springs absorb parallel, angular and shaft end-play misalignments. 順、逆時針回轉特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 彈性體為不銹鋼膜片。 Elastomer for stainless steel plate. 適用于伺服電機、機器手、數控機床. Is suitable in servo motor, Machinist, CNC Machine.

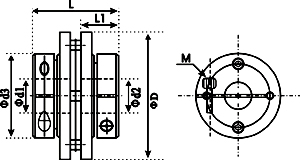

結構圖：

選型指導:Ordering lnformation

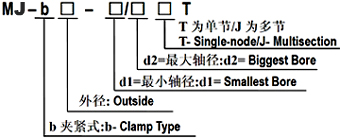

例：MJ–b56–14/20TT           MJ：系列號，材料為鋁合金           b56:b為夾緊型，56為外徑尺寸56mm          14：d1軸徑為14mm          20：d2軸徑為20mm          n 請參考下圖參數表 Example:MJ–b56–14/20TT                   MJ: Series NO, Material: Aluminum Alloy                  b56:b- Clamp Type, Outside dimension 56mm                  14:d1 Bore: 14mm                  20: d2 Bore: 20mm

MJ型單節法蘭膜片聯軸器尺寸表
MJ Single-node Metal Disk Type Flexible Coupling Dimensions
